Universal Serial Bus (USB) has been an essential component of modern technology, connecting countless devices such as smartphones, computers, cameras, and more. Over the years, USB Connecter technology has evolved to provide faster speeds, improved power delivery, and versatile form factors. This comprehensive guide will cover different types of USB connectors, versions, speed, key differences, plus their common uses.
Table of Contents
What is USB?
USB (Universal Serial Bus) is an industry standard that establishes specifications for cables, connectors, and protocols used for communication, power supply, and data transfer between electronic devices. First introduced in 1996, USB has become the most widely used interface with USB Connector for connecting peripherals to computers and other digital devices.

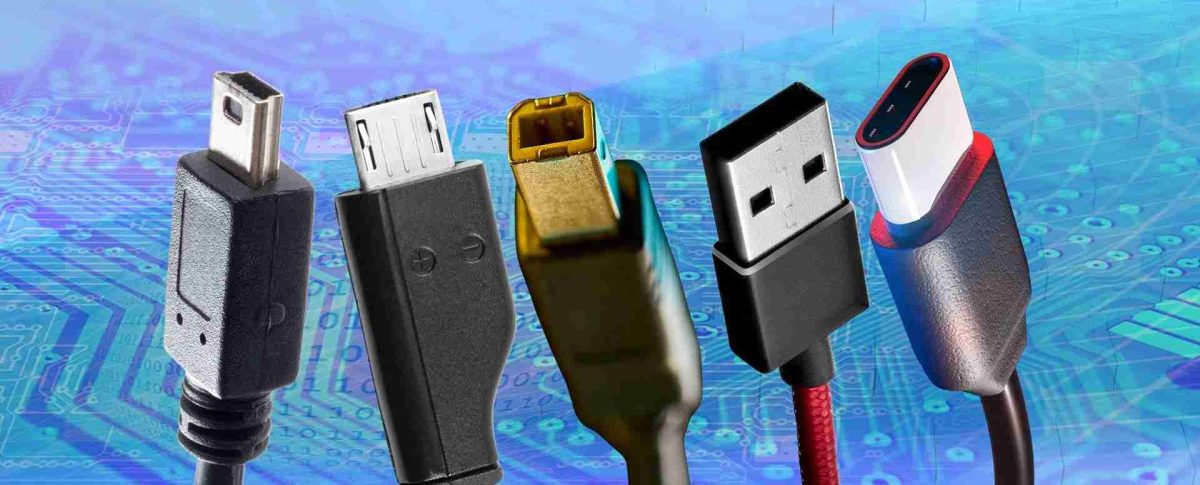

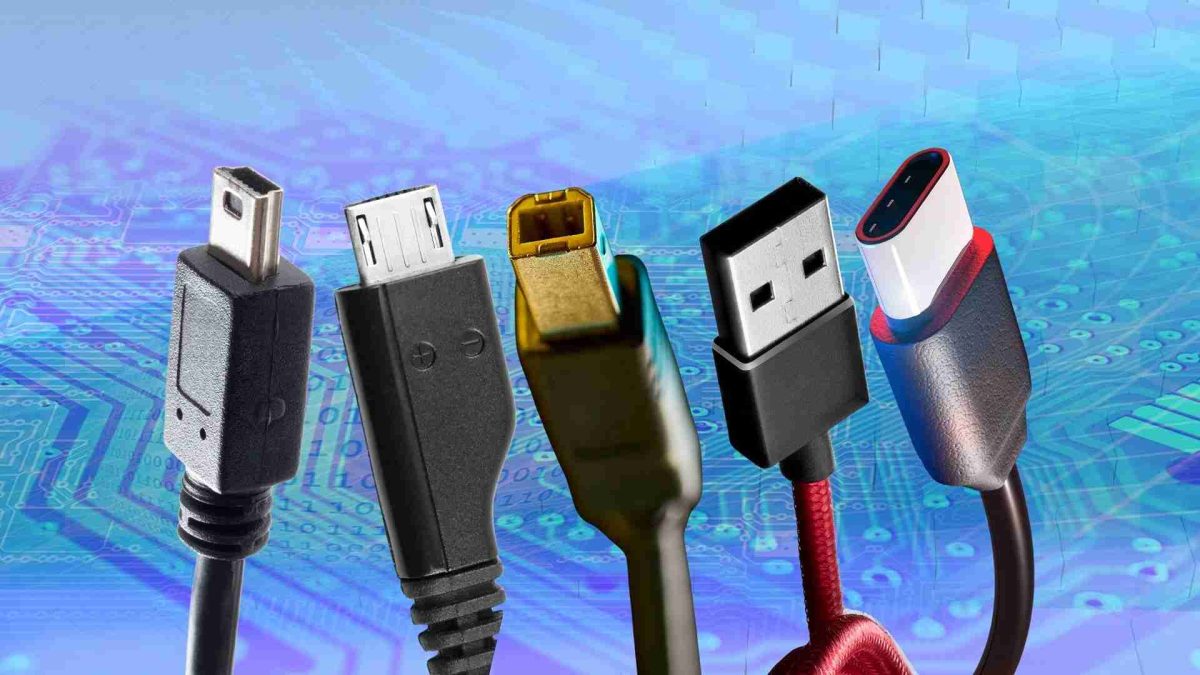

Types of USB Connectors
There are various types of USB connectors, each serving different purposes and devices. Let’s break down the most common types:
a) USB Type-A
- Shape: Rectangular
- Common Uses: Connecting keyboards, mice, flash drives, external hard drives
- Compatibility: Type A USB Connector usually found on laptops, desktops, gaming consoles, TVs
b) USB Type-B
- Shape: Square with beveled corners
- Common Uses: Printers, scanners, and some external hard drives
- Compatibility: Type B USB Connector is rarely seen on modern devices but is still used in specific peripherals
c) USB Type-C
- Shape: Oval, symmetrical
- Common Uses: Smartphones, laptops, tablets, power banks
- Compatibility: Reversible connector, supports faster data transfer and higher power delivery
d) Mini USB
- Shape: Smaller version of USB Type-B
- Common Uses: Older cameras, MP3 players, some gaming controllers
e) Micro USB
- Shape: Smaller than Mini USB
- Common Uses: Older smartphones, tablets, Bluetooth devices
- Note: Micro USB Connector usually found has largely been replaced by USB-C
USB Versions and Their Evolution
| USB Version | Year Introduced | Maximum Speed | Notable Features |
| USB 1.0 | 1996 | 1.5 Mbps | Basic connectivity |
| USB 1.1 | 1998 | 12 Mbps | First widely adopted version |
| USB 2.0 | 2000 | 480 Mbps | High-Speed USB |
| USB 3.0 | 2008 | 5 Gbps | SuperSpeed USB |
| USB 3.1 | 2013 | 10 Gbps | SuperSpeed+ USB |
| USB 3.2 | 2017 | 20 Gbps | Multiple lanes for faster speeds |
| USB4 | 2019 | 40 Gbps | Based on Thunderbolt 3 protocol |
a) USB 1.0 and 1.1
These were the first versions of USB and provided basic connectivity with low data transfer speeds. USB 1.1 was the first widely adopted version.
b) USB 2.0
Introduced in 2000, USB 2.0 brought significant improvements with a maximum speed of 480 Mbps. It became the standard for many years and is still found in many devices today.
c) USB 3.0 and 3.1
USB 3.0, launched in 2008, introduced SuperSpeed, offering transfer rates up to 5 Gbps. USB 3.1, released in 2013, doubled that speed to 10 Gbps.
d) USB 3.2
Released in 2017, USB 3.2 provided a maximum speed of 20 Gbps by using multiple lanes of data transmission.
e) USB 4
Introduced in 2019, USB 4 is based on the Thunderbolt 3 protocol and supports transfer speeds of up to 40 Gbps. It also improves compatibility with Thunderbolt devices.
Key Differences Between USB Versions
| Feature | USB 2.0 | USB 3.0/3.1 | USB 3.2 | USB4 |
| Max Speed | 480 Mbps | 5-10 Gbps | 20 Gbps | 40 Gbps |
| Power Delivery | 2.5W | Up to 15W | Up to 100W | Up to 100W |
| USB Connector Types | Type-A, Type-B | Type-A, Type-B, C | Type-C | Type-C |
| Thunderbolt Support | No | No | Partial | Full |
USB Types and Their Common Uses
| USB Connector Type | Common Devices | Key Features |
| USB Type-A | Computers, keyboards, mice | Standard rectangular connector |
| USB Type-B | Printers, scanners | Square-shaped connector |
| USB Type-C | Smartphones, laptops, tablets | Reversible, fast data transfer |
| Mini USB | Older cameras, MP3 players | Compact version of Type-B |
| Micro USB | Older smartphones, Bluetooth devices | Smaller than Mini USB |
Thunderbolt vs USB: What’s the Difference?
Thunderbolt is a hardware interface developed by Intel in collaboration with Apple. It combines PCI Express (PCIe), DisplayPort, and power delivery into a single high-speed connection. Thunderbolt is compatible with USB Type-C, making it a versatile option for data transfer, charging, and connecting external displays.
Thunderbolt and USB are often compared due to their similar-looking connectors and overlapping functionalities. Here are the key differences:
| Feature | USB4 | Thunderbolt 3/4 |
| Max Speed | 40 Gbps | 40 Gbps |
| Power Delivery | 100W | 100W |
| Display Support | Yes | Yes |
| Daisy-Chaining | No | Yes |
Thunderbolt 1 to 5: A Comprehensive Comparison
Thunderbolt technology has revolutionized the way we connect devices, offering high-speed data transfer, display support, and power delivery through a single cable. Over the years, Thunderbolt has evolved significantly, with each version bringing new capabilities and improvements. In this blog, we compare Thunderbolt 1 to Thunderbolt 5, highlighting their key differences, features, and use cases.
| Version | Year Introduced | Max Speed | Power Delivery | Video Output |
| Thunderbolt 1 | 2011 | 10 Gbps | 10W | Supports 1 DisplayPort 1.1 |
| Thunderbolt 2 | 2013 | 20 Gbps | 10W | Supports 1 DisplayPort 1.2 |
| Thunderbolt 3 | 2015 | 40 Gbps | Up to 100W | Supports dual 4K displays |
| Thunderbolt 4 | 2020 | 40 Gbps | Up to 100W | Supports dual 4K or 1x 8K |
| Thunderbolt 5 | 2024 | 80 Gbps (120 Gbps*) | Up to 240W | Supports dual 8K or 3x 4K |
Both USB and Thunderbolt have revolutionized the way devices connect and transfer data. While USB is more universal and widely used, Thunderbolt offers superior speed and versatility.
With USB4 integrating Thunderbolt 3 technology, the future of connectivity looks faster and more efficient. Whether you’re looking to connect peripherals or set up a workstation with multiple displays, understanding the differences between USB and Thunderbolt will help you make the right choice.
